Mini CCWDM 迷你CCWDM MUX /DEMUX 模塊

Features

Low insertion loss.
High wavelength accuracy
temperature: -40 to 85℃
Excellent thermal stability
Extremely small size

Applications

CWDM Systems
Telecom networks
Metro Area Networks
Broadband Networks
PON Networks
CATV Link

現在查詢下載

類別

熱門產品

產品詳細信息

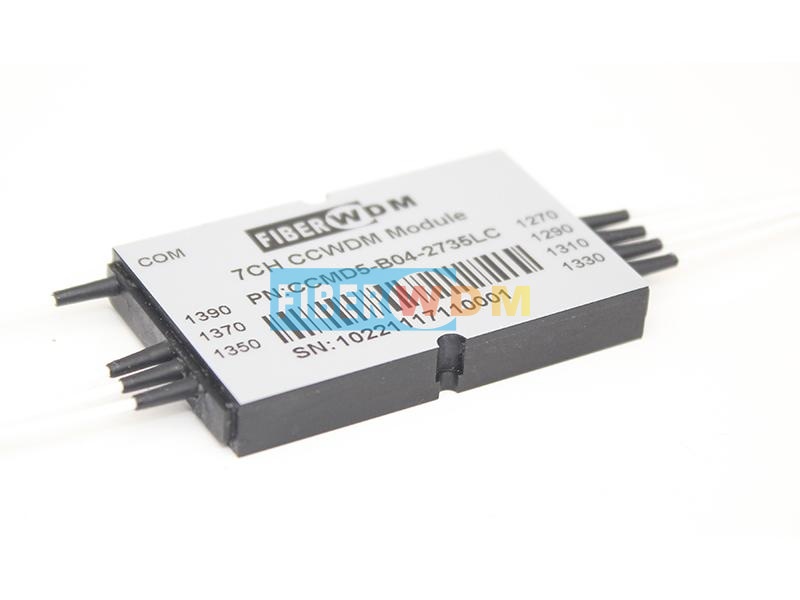

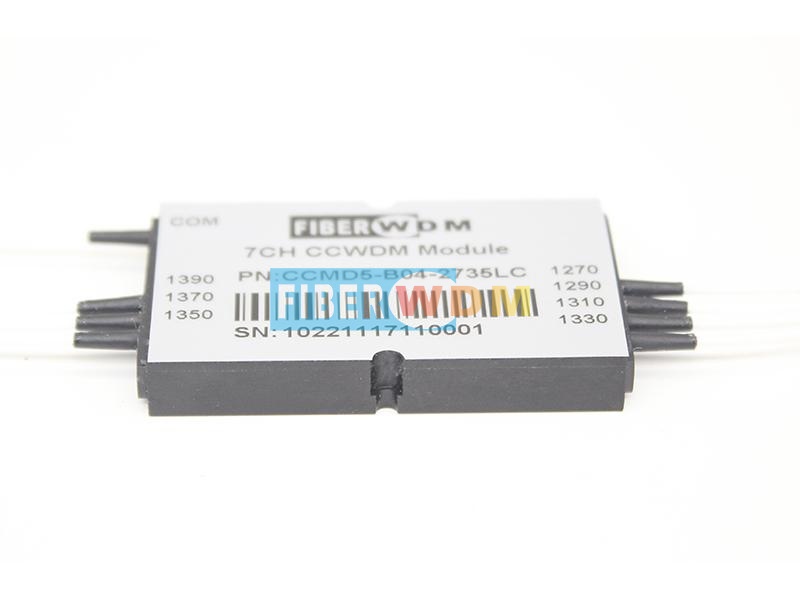

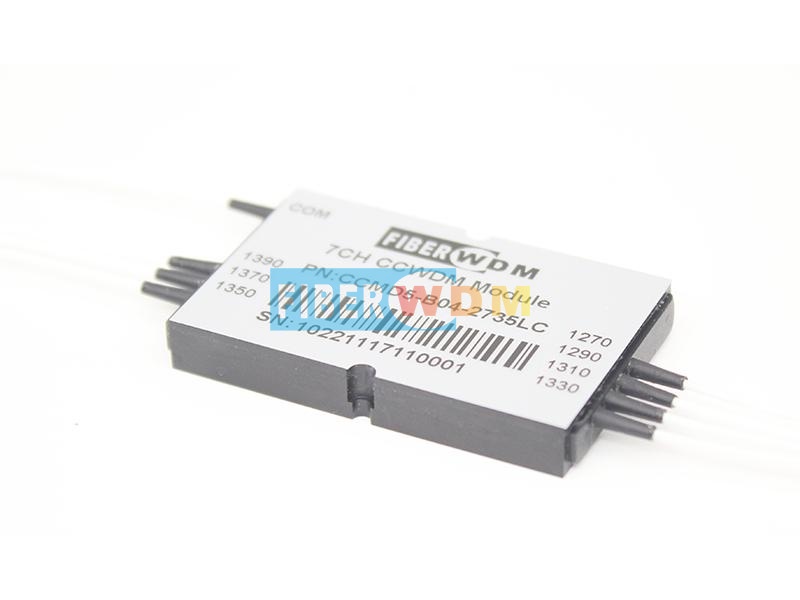

CCWDM Compact CWDM Mux/Demux Module

FIBERWDM offers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages. Its compact size and unique carrier tray set it apart,and can be installed ina variety of field situations.

The compact CWDM is based on thin film filter technology andavailable in 4, 8,16,18-channel configurations, or the customer specified. Optical performance is excellent with low insertion loss and excellent temperature stability.

Specifications

Parameters		1x4	1x8	1x16	1x18
Center Wavelength (nm)		ITU, ITU+1
Passband (nm)		ITU±6.5
Operating Wavelength (nm)		1270~1610
Channel Space (nm)		20
Fiber Type		SMF-28e or customer specified
IL (dB)		1.2	1.8	2.5	3.0
Isolation (dB)	Adjacent Channel	30
	Non-Adjacent Channel	45
Ripple (dB)		0.3
PDL (dB)		0.2
PMD (ps)		0.1
RL (dB)		45
Directivity (dB)		50
Maximum Optical Power (mw)		500
Operating Temperature(℃)		-40～85
Storage Temperature(℃)		-40～85
Package (mm)		44286.2		50x50x6

Notes: 1) FIBERWDMSupport Customized Design, please contact us by email sales@fiberwdm.com

2) If you want to order, please email us and tell us how many waves and which waves do you want, we will send you more detail datasheet which you want.

Package Dimension

CCWDM MUX/ DEMUX Module

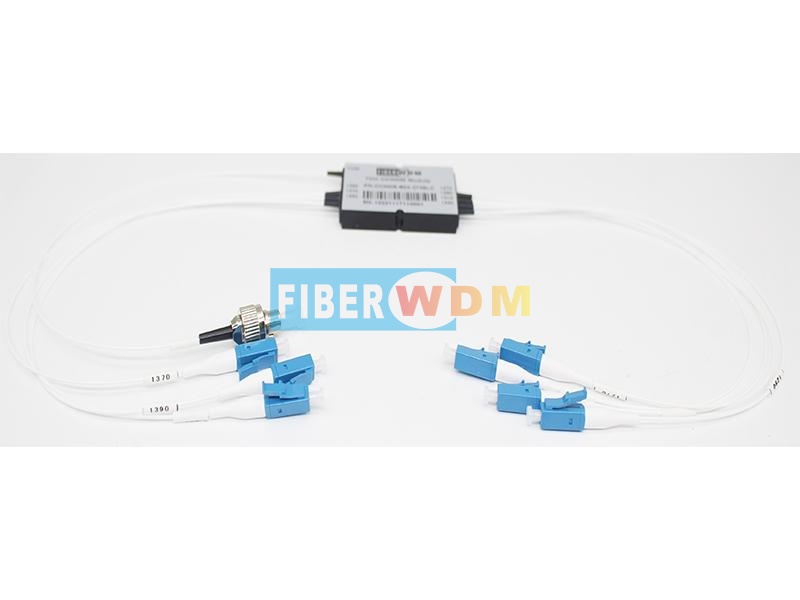

Note:Fiber diameter is be 0.9mm, Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
