40G QSFP+ LR4 10Km Single mode LC Optical Transceiver (Industrial)

Features:

4 CWDM lanes MUX/DEMUX design
Cooled CWDM DFB transmitter
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps

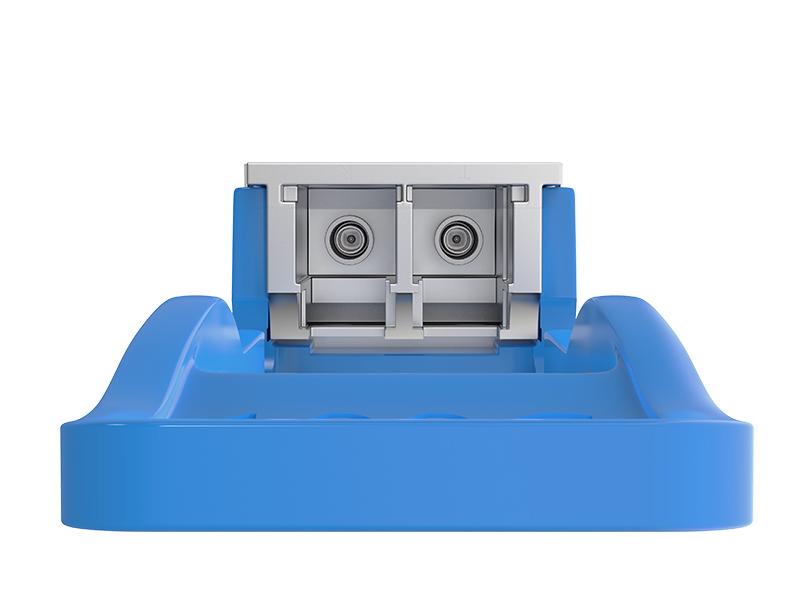

Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard and OTU3 for line rate of 43Gbps
QSFP MSA compliant
Up to10km transmission
Compliant with QDR/DDR InfiniBand data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
RoHS Compliant Part

Applications:

Rack to rack
Data centers Switches and Routers
Metro networks
Switches and Routers
40G BASE-LR4 Ethernet Links

現(xiàn)在查詢下載

類別

熱門產品

產品詳細信息

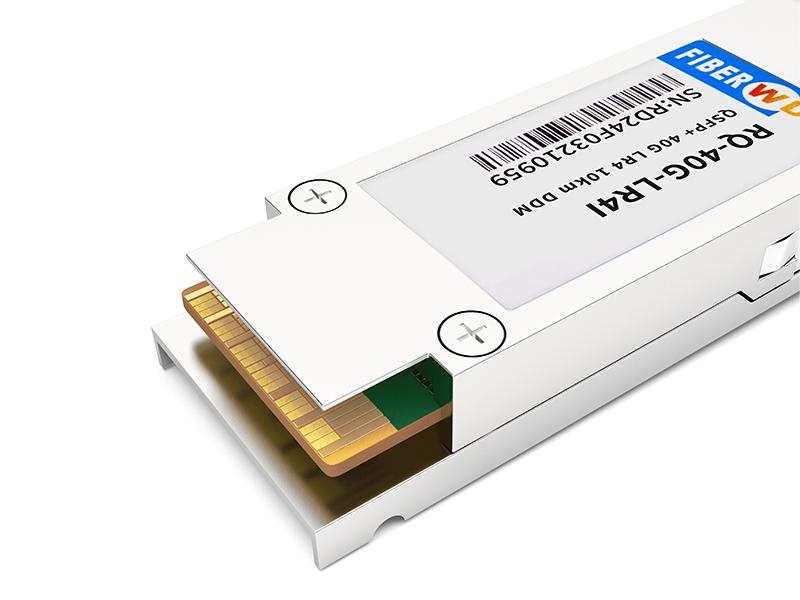

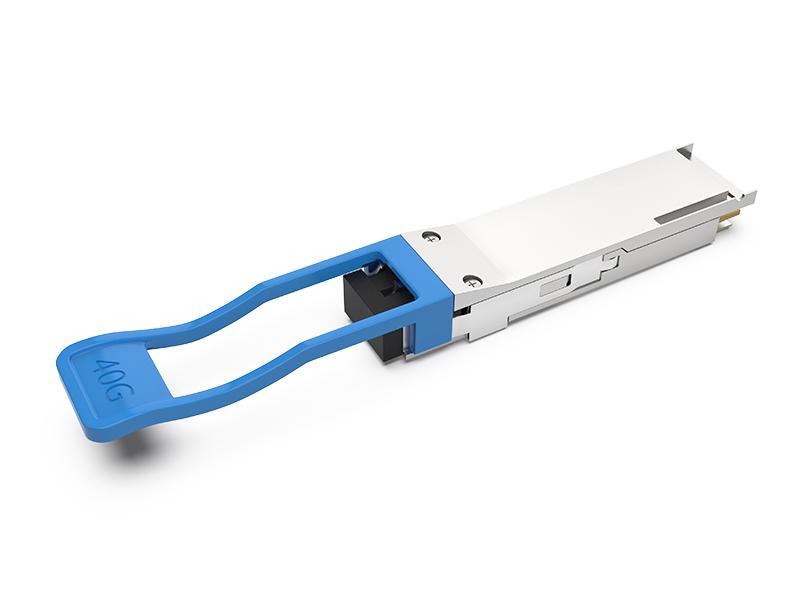

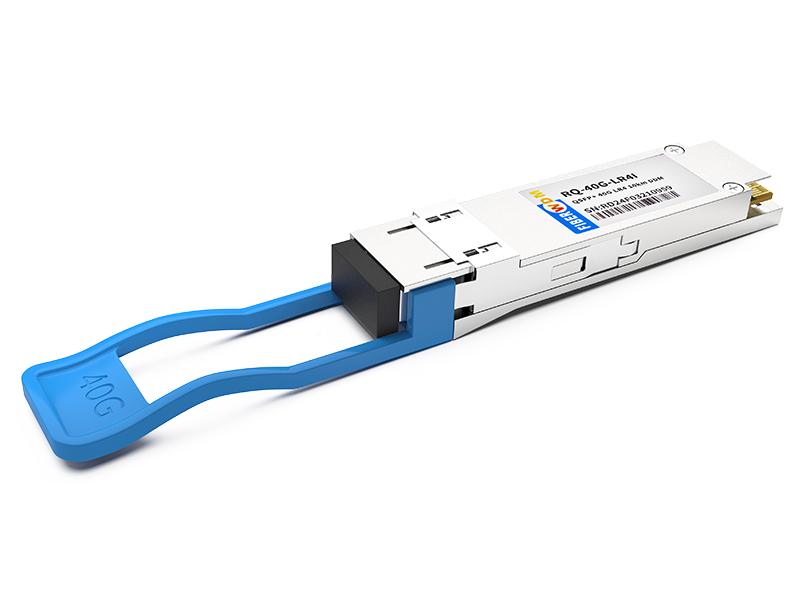

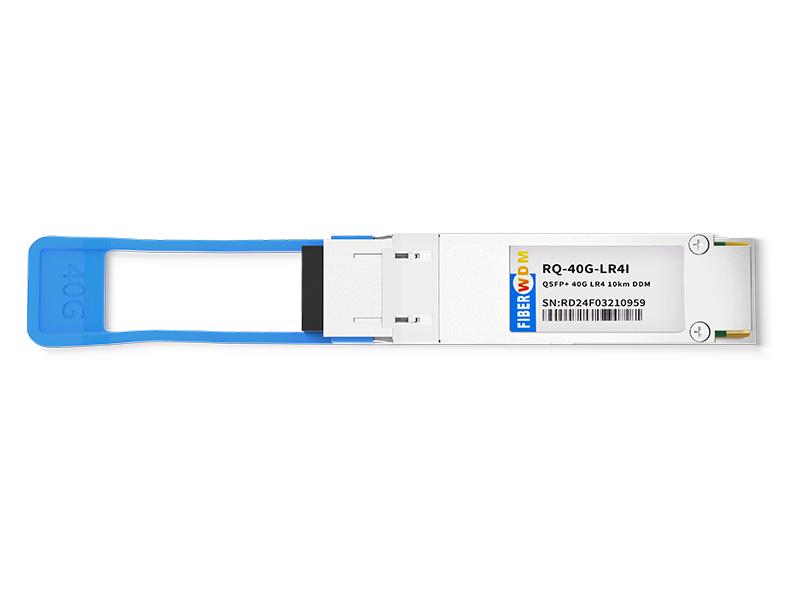

RQ-40G-LR4I

40Gb/s 10km QSFP+ Transceiver Hot Pluggable, Duplex LC Connector, Single mode

40G LR4 10km

Description:

The RQ-40G-LR4I is a transceiver module designed for 10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically DE-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

The RQ-40G-LR4I is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typical	Max.	Unit
Storage Temperature	TS	-40		+85	°C
Supply Voltage	VCCT, R	-0.5		4	V
Relative Humidity	RH	0		85	%

Recommended Operating Environment:

Parameter	Symbol	Min.	Typical	Max.	Unit
Case operating Temperature	TC	-40		+85	°C
Supply Voltage	VCCT, R	+3.13	3.3	+3.47	V
Supply Current	ICC			1000	mA
Power Dissipation	PD			3.5	W

Electrical Characteristics (TOP = -40°C to 85°C, VCC = 3.13 to 3.47 Volts)

Parameter	Symbol	Min	Typ	Max	Unit	Note
Data Rate per Channel		-	10.3125	11.2	Gbps
Power Consumption		-	2.5	3.5	W
Supply Current	Icc		0.75	1.0	A
Control I/O Voltage-High	VIH	2.0		Vcc	V
Control I/O Voltage-Low	VIL	0		0.7	V
Inter-Channel Skew	TSK			150	Ps
RESETL Duration			10		Us
RESETL De-assert time				100	ms
Power On Time				100	ms
Transmitter
Single Ended Output Voltage Tolerance		0.3		4	V	1
Common mode Voltage Tolerance		15			mV
Transmit Input Diff Voltage	VI	150		1200	mV
Transmit Input Diff Impedance	ZIN	85	100	115
Data Dependent Input Jitter	DDJ		0.3		UI
Receiver
Single Ended Output Voltage Tolerance		0.3		4	V
Rx Output Diff Voltage	Vo	370	600	950	mV
Rx Output Rise and Fall Voltage	Tr/Tf			35	ps	1
Total Jitter	TJ		0.3		UI

Note:

1. 20～80%

Optical Parameters (TOP = -40°C to 85°C, VCC = 3.0 to 3.6 Volts)

Parameter	Symbol	Min	Typ	Max	Unit	Ref.
Transmitter
Wavelength Assignment	L0	1264.5	1271	1277.5	nm
	L1	1284.5	1291	1297.5	nm
	L2	1304.5	1311	1317.5	nm
	L3	1324.5	1331	1337.5	nm
Side-mode Suppression Ratio	SMSR	30	-	-	dB
Total Average Launch Power	PT		-	8.3	dBm
Average Launch Power, each Lane		-7	-	2.3	dBm
Transmit OMA per Lane	TxOMA	-6		3.5	dBm
Difference in launch power between any two lanes (OMA)				4.7	dBm
Transmitter Dispersion Penalty each Lane	TDP			2.0	dB
Extinction Ratio	ER	3.5	5		dB
Extinction Ratio	ER	3.5	-	-	dB
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}		{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}
Optical Return Loss Tolerance		-	-	20	dB
Average Launch Power OFF Transmitter, each Lane	Poff			-30	dBm
Relative Intensity Noise	Rin			-128	dB/HZ	1
Optical Return Loss Tolerance		-	-	12	dB
Receiver
Damage Threshold	THd	3.3			dBm	1
Average Power at Receiver Input, each Lane	R	-14		3	dBm
Receive Electrical 3 dB upper Cut off Frequency, each Lane				12.3	GHz
RSSI Accuracy		-2		2	dB
Receiver Reflectance	Rrx			-26	dB
Receiver Power (OMA), each Lane		-	-	3.5	dBm
Receive Electrical 3 dB upper Cutoff Frequency, each Lane				12.3	GHz
LOS De-Assert	LOSD			-15	dBm
LOS Assert	LOSA	-30			dBm
LOS Hysteresis	LOSH	0.5			dB

Note

1. 12dB Reflection

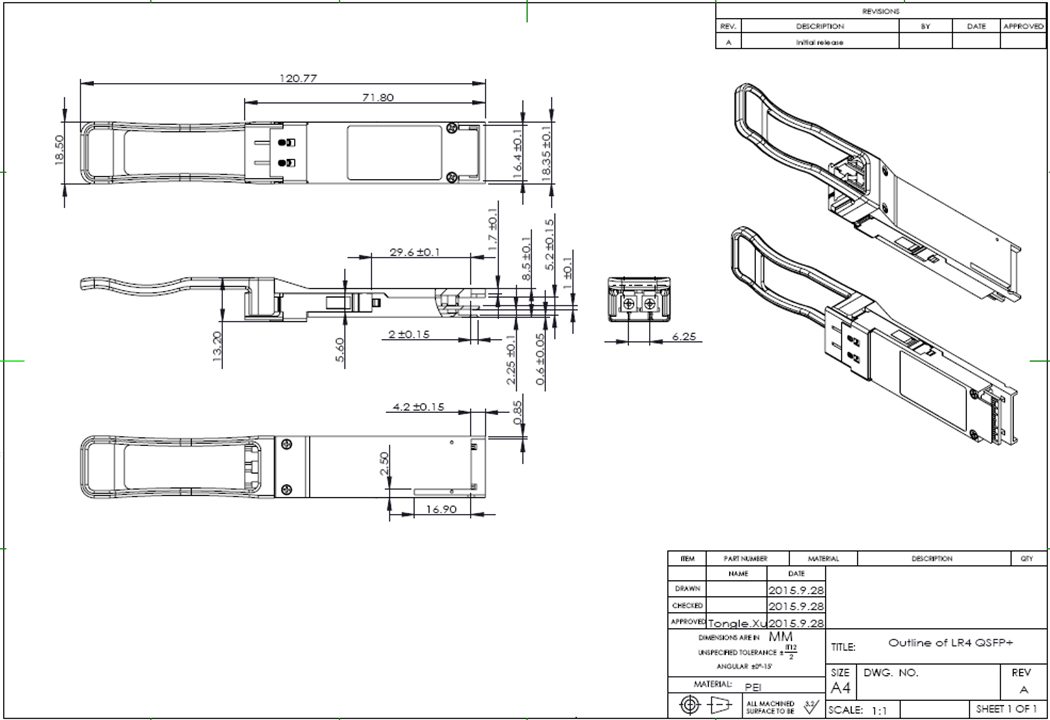

Mechanical Dimensions

40G LR4 10km
