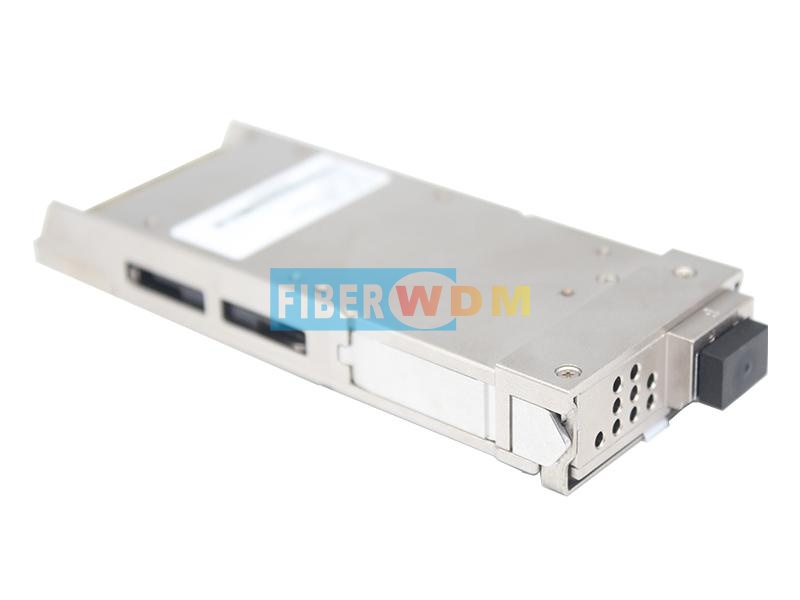

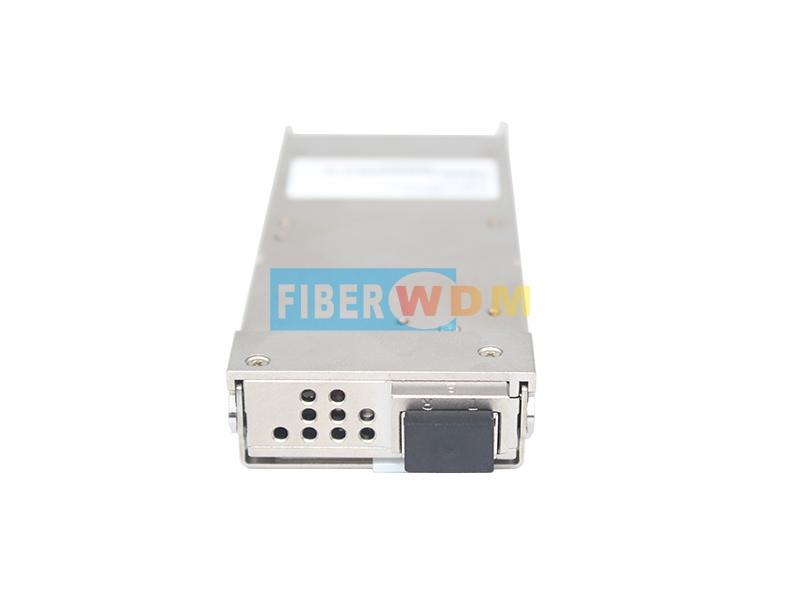

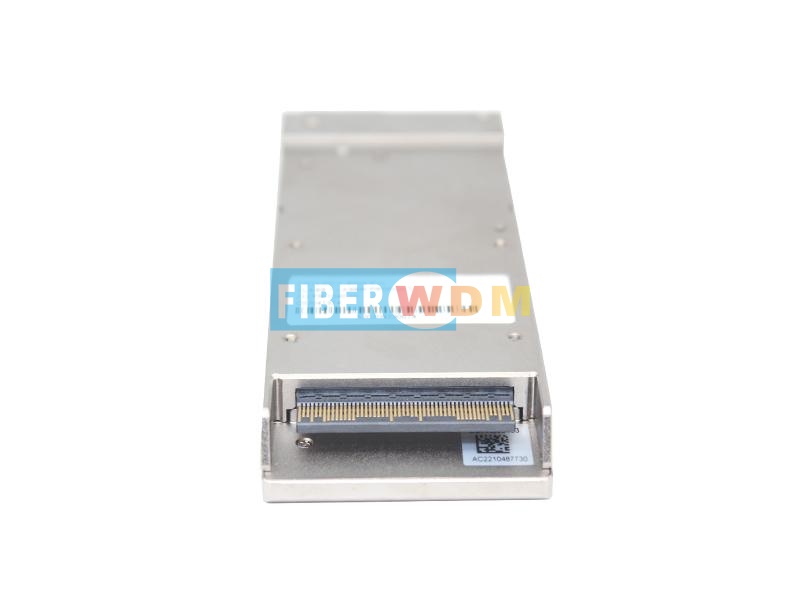

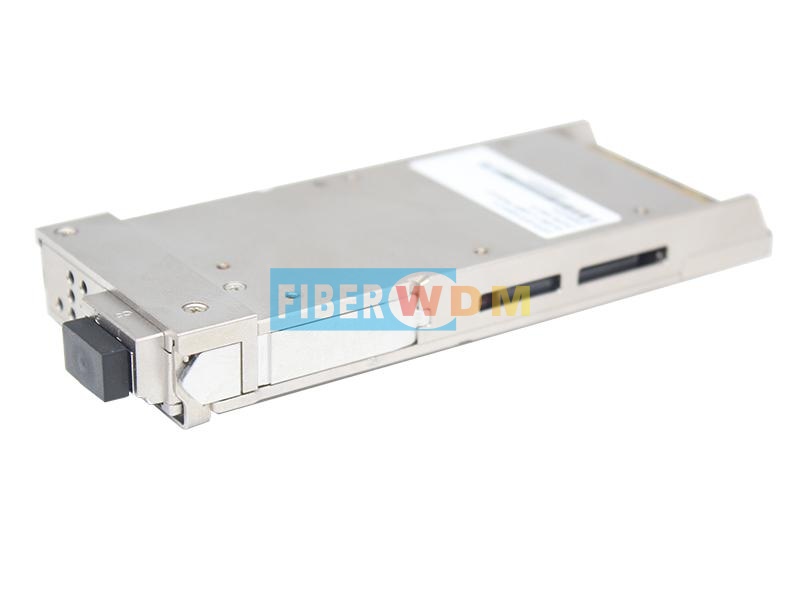

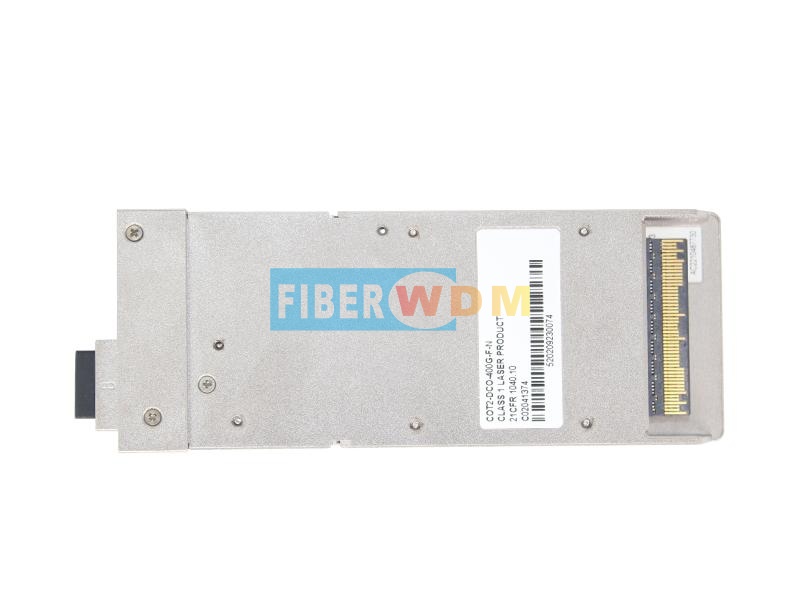

400G CFP2 DCO Optical Transceiver Module

400G CFP2 optical transceiver module
Used on the system's motherboard
Up to2000 km in MAN DWDM application

現在查詢下載

類別

熱門產品

產品詳細信息

100G/200G/400G CFP2 DCO Pluggable Optical Transceiver Module

Product Features

100G CFP2-DCO coherent optical module operating up to 112.30 Gbps
200G CFP2-DCO coherent optical module operating up to 211.45 Gbps
400G CFP2-DCO coherent optical module operating up to 425 Gbps
PM-QPSK (100G/200G) and PM-16QAM (200G / 400G) and PM-16QAM PS (200G) modulation formats
CFP2 MSA Hardware Specification 1.0 with modifications compliant
CFP MSA Management Interface Specification 2.2 with modifications compliant
Maximum power consumption: 31 W

400G CFP2 DCO

Optical Port Specifications

DCO-200G-C

Parameter	100GModeValue	200GModeValue
Network lane, modulation format	PM-QPSK	PM-16QAM
Optical channels	96	96
Grid spacing	50 GHz	50 GHz
Frequency range	191.3 to 196.05 THz	191.3 to 196.05 THz
Wavelength stability	±1.5 GHz	±1.5 GHz
Tx output power, default	-0.5 dBm	-0.5 dBm
Max. Tx output power	-0.5 dBm	-0.5 dBm
Min. Tx output power	-6.5 dBm	-6.5 dBm
Tx output power accuracy	±1.5 dBm	±1.5 dBm
Output power during tuning	< -35 dBm	< -35 dBm
CD tolerance	±40 000 ps/nm	±10 000 ps/nm
DGD tolerance	50 ps	12 ps
Input power range	0 to -18 dBm	0 to -18 dBm
OSNR tolerance (BOL)	12.5 dB (Rx optical power: -8 to -10 dBm)	23 dB (Rx optical power: -8 to -10 dBm)
Power consumption	Typical: 24 W Maximum: 27.5 W	Typical: 27.5 W Maximum: 31 W

DCO-200G-S

Parameter	100GModeValue	200GModeValue
Network lane, modulation format	PM-QPSK	PM-16QAM
Optical channels	96	96
Grid spacing	50 GHz	50 GHz
Frequency range	191.3 to 196.05 THz	191.3 to 196.05 THz
Wavelength stability	±1.5 GHz	±1.5 GHz
Tx output power, default	-0.5 dBm	-0.5 dBm
Max. Tx output power	-0.5 dBm	-0.5 dBm
Min. Tx output power	-6.5 dBm	-6.5 dBm
Tx output power accuracy	±1.5 dBm	±1.5 dBm
Output power during tuning	< -35 dBm	< -35 dBm
CD tolerance	±40 000 ps/nm	±40 000 ps/nm
DGD tolerance	50 ps	22 ps
Input power range	0 to -18 dBm	0 to -18 dBm
OSNR tolerance (BOL)	12.5 dB (Rx optical power: -8 to -10 dBm)	18.5dB (Rx optical power: -8 to -10 dBm)
Power consumption	Typical: 22 W Maximum: 24 W	Typical:22 W Maximum:24 W

DCO-400G-L

Parameter	200GModeValue			400GModeValue
Network lane, modulation format	PM-QPSK	PM-16QAM	PM-16QAM PS	PM-16QAM
Optical channels	80	96	96	80
Grid spacing	75 GHz	50 GHz	50 GHz	75 GHz
Frequency range	190.7 to 196.65 THz	191.3 to 196.05 THz	191.3 to 196.05 THz	190.7 to 196.65 THz
Wavelength stability	±1.5 GHz	±1.5 GHz	±1.5 GHz	±1.5 GHz
Tx output power, default	-0.5 dBm	-2.5 dBm	-2.5 dBm	-2.5 dBm
Max. Tx output power	-0.5 dBm	-2.5 dBm	-2.5 dBm	-2.5 dBm
Min. Tx output power	-6.5 dBm	-6.5 dBm	-6.5 dBm	-6.5 dBm
Tx output power accuracy	±1.5 dB	±1.5 dBm	±1.5 dBm	±1.5 dBm
Output power during tuning	< -35 dBm	< -35 dBm	< -35 dBm	< -35 dBm
CD tolerance	±40 000 ps/nm	±40 000 ps/nm	±40 000 ps/nm	±15 000 ps/nm
DGD tolerance	22 ps	22 ps	22 ps	22 ps
Input power range	0 to -18 dBm	0 to -18 dBm	0 to -18 dBm	0 to -18 dBm
OSNR tolerance (BOL)	14.5 dB (Rx optical power: -8 to -10 dBm)	18.5 dB (Rx optical power: -8 to -10 dBm)	16.5 dB (Rx optical power: -8 to -10 dBm)	23 dB (Rx optical power: -8 to -10 dBm)
Power consumption	Typical: 26 W Maximum: 28 W	Typical: 22 W Maximum: 24 W	Typical: 22 W Maximum: 24 W	Typical: 26 W Maximum: 28 W

Operating Environment

Parameter		Min.	Max.	Unit
Storage temperature		－40	85	℃
Operating case temperature		0	70	℃
Relative humidity,operating	Non condensing	5	85	%
Relative humidity,operating	Short term<96 hrs Non condensing	5	95	%
ESD sensitivity(HBM)	High-speed pins>=5Gbps	-	1000	V
ESD sensitivity(HBM)	Low-speed pins<5Gbps	-	2000	V

Mechanical Design

Dimensions(L × W × H): 109.5 mm × 42.5 mm × 15.4 mm

Ordering Information

Module model	Description
DCO-200G-C	Supports 100G/200G rates，Supports100GPM-QPSK、200GPM-16QAM
DCO-200G-S	Supports 100G/200G rates，Supports100GPM-QPSK、200GPM-16QAM
DCO-400G-L	Supports 200G/400G rates，Supports 200GPM-QPSK、200GPM-16QAM、200GPM-16QAM PS、400GPM-16QAM
