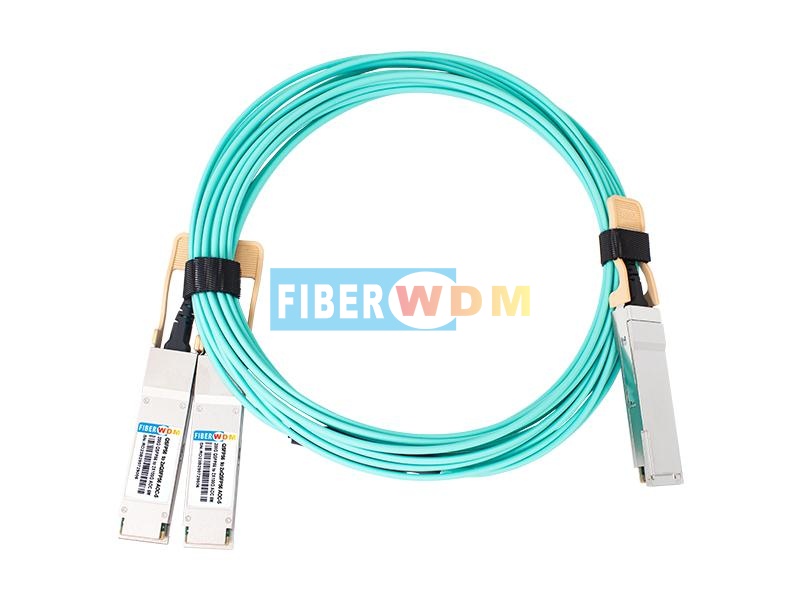

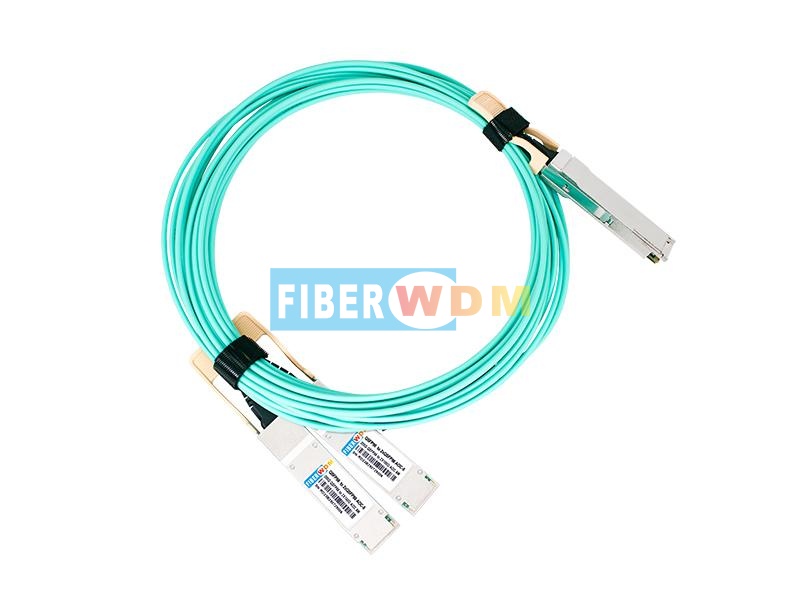

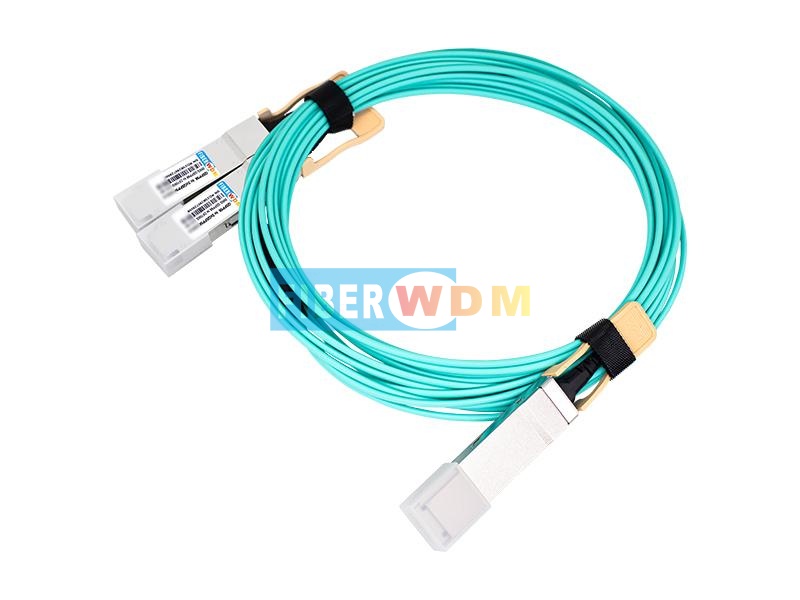

200G QSFP56 SR4 to 2xQSFP28 SR2 AOC Transceiver

Features

Active optical cable with breakout from QSFP56 200G to two QSFP28 100G
Up to 53.125Gbps data rate per channel PAM4 modulation
Integrated 850nm VCSEL array and PD array
DDM function implemented
Hot-pluggable
Low power dissipation, <4W on 200G end, <3W on 100G end
Commercial operating case temperature range: 0℃ to 70 ℃
Compliant with ROHS2.0

Applications

Data centers and Cloud Networks
200G InfiniBand HDR systems

Standards

IEEE 802.3cd
InfiniBand 4xHDR
SFF 8679
CMIS4.0 or SFF8636

現在查詢下載

類別

熱門產品

產品詳細信息

200G QSFP56 SR4 to 2xQSFP28 SR2 Active Optical Cable

Rev	Date	Modified by	Description
A	Nov 5,2021	Alan	Initial Release
B	Feb 9,2022	Alan	Update drawing
C	Jul 16,2022	Alma	Update product picture

Absolute Maximum Ratings

Product	Modula tion	Protocol	Nominal Rate			Specifications
Product	Modula tion	Protocol	Aggregate (Gbps)	Electrical Lanes (Gbaud)	ppm	High Speed Electrical	Pre-FEC Max BER	Link
200G end	PAM4	IEEE802.3cd	212.5	26.5625	±100	200GAUI-4	1E-6 for InfiniBand HDR; 2.4E-4 for 200GBASE-SR4	0.5 ~ 100m
Per 100G end	PAM4	IEEE802.3cd	106.25	26.5625	±100	200GAUI-4	1E-6 for InfiniBand HDR; 2.4E-4 for 200GBASE-SR4	0.5 ~ 100m

Parameter	Symbol	Unit	Min	Max
Case Operating Temperature	Top	℃	0	70
Storage Temperature Range	Ts	℃	-40	85
Relative Humidity	RH	%	0	85
Power Supply Voltage	Vcc	V	-0.5	3.6

Recommended Operating Conditions

Parameter	Symbol	Unit	Min	Typ	Max
Operating Case Temperature Range	Tca	oC	0	/	70
Power Supply Voltage	Vcc	V	3.135	3.3	3.465

Electric Ports Definition

Parameter	Symbol	Unit	Min	Typ	Max	Notes
Supply Voltage	VCC	V	3.135	3.3	3.465
Power Consumption	Pc	W			4	200G end
Power Consumption	Pc	W			3	100G end
Transmitter
Input Differential Impedance	RIN	Ω	80	100	120
Single Ended Data Input Swing	VIN	mVp-p	90		500
Transmit Disable Voltage	VDIS	V	2		VCCHOST
Transmit Enable Voltage	VEN	V	VEE		VEE+0.8
Transmit Fault Assert Voltage	VFA	V	2		VCCHOST
Transmit Fault De-Assert Voltage	VFDA	V	VEE		VEE+0.8
Receiver
Single Ended Data Output Swing	VOD	mVp-p	200		500
LOS Fault	VLOSFT	V	2		VCCHOST
LOS Normal	VLOSNR	V	VEE		VEE+0.8
Differential termination mismatch		%			10
IIC communication
IIC Clock frequency	-	KHZ	/	100	400
clock stretching	-	us	/	/	500

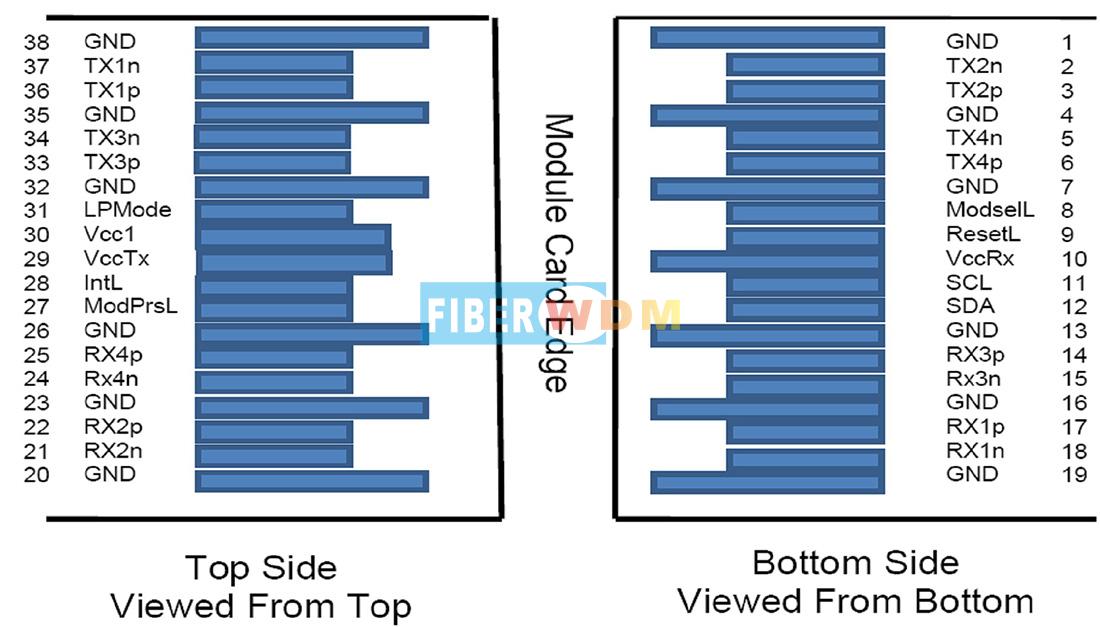

Pin Description

The electrical interface to the transceiver is a 38 pins edge connector. The 38 pins provide high speed data, low speed monitoring and control signals, I2C communication, power and ground connectivity. The top and bottom views of the connector are provided below, as well as a table outlining the contact numbering, symbol and full description.

Module Memory Map

Compatible with CMIS rev 4.0/ SFF8636

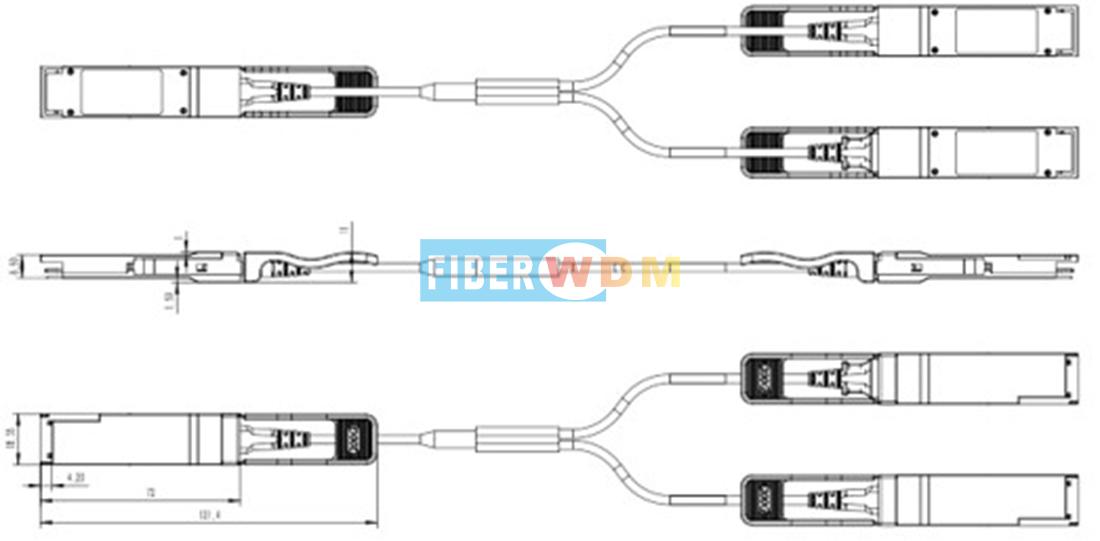

Package Outline

The mechanical specifications are based on QSFP56 transceiver module specification, substituting the optical connectors with a cable connecting three ends.

Cable Breakout point

Total Length（m）	*Breakout 2100G（m)*
1	0.5
2	0.5
3	1
5	2
7	3
X (X≥10)	3

Ordering information

Part Number	Description
Q56-2Q28-200G-1M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 1M
Q56-2Q28-200G-3M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 3M
Q56-2Q28-200G-5M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 5M
Q56-2Q28-200G-7M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 7M
Q56-2Q28-200G-10M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 10M
Q56-2Q28-200G-15M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 15M
Q56-2Q28-200G-20M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 20M
Q56-2Q28-200G-30M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 30M
Q56-2Q28-200G-40M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 40M
Q56-2Q28-200G-50M	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 50M
Q56-2Q28-200G-xxM	200G QSFP56 SR4 to 2xQSFP28 SR2 AOC xxM
