150GHz 32路雙纖雙向 1529.553nm-1566.723nm DWDM 波分復用設備

IL<6.0dB, 100GHZ DWDM AAWG Technology
Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
Passive devices, No Power No Cooling Required
Support Metro, Regional and Long Haul DWDM Networks

現在查詢下載

類別

熱門產品

產品詳細信息

150GHz 32CH DWDM MUX DEMUX 1529.553nm-1566.723nm with Monitor Port LC/UPC 1U Rack

The 150GHz 32ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1529.553nm-1566.723nm, in accordance with the ITU 150GHZ grid, it maximizes the capacity of the C-band range.

The 150GHz 32ch DWDM is totally passive DWDM device and support low insertion loss (wavelength ports＜6.0dB), Support 800G x 32ch business in DWDM transfer system.

32CH DWDM

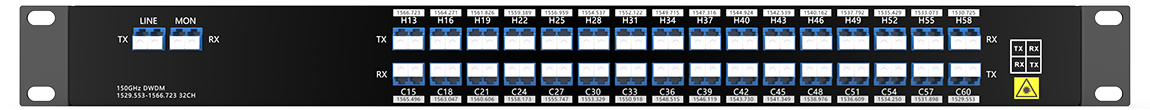

Product Panel

150Ghz 32CH DWDM MUX DEMUX

Mon port is for network link monitoring or power monitoring, easy trouble shooting without affecting traffic.

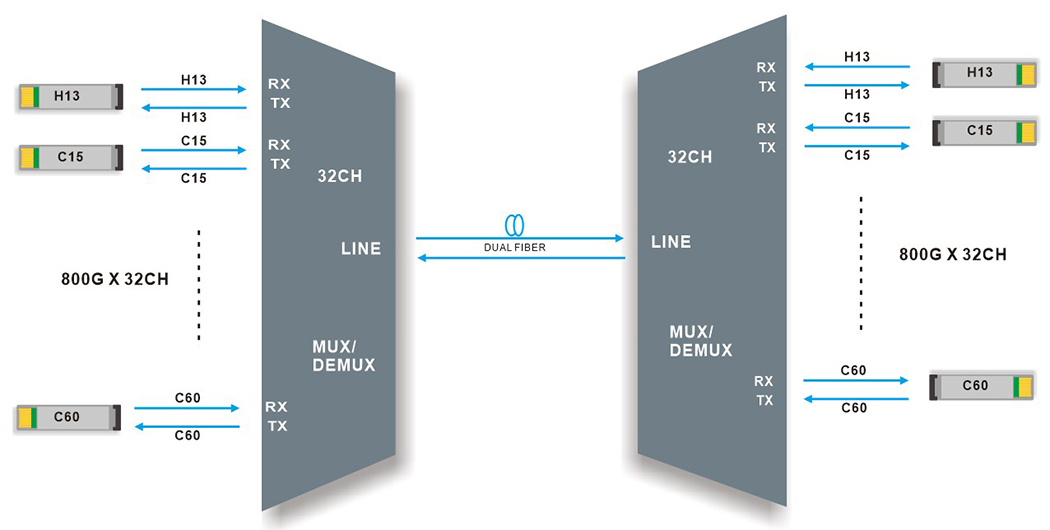

Line Link

32CH DWDM MUX DEMUX Dual fiber transmission

32 Channels DWDM MUX DEMUX, supports 32 channels 800G difference business in two optical fiber for point-to-point transmission. It works in IDC transfer system.

Product Specification

Wavelength	1529.553nm-1566.723nm	Channel Spacing	150GHz
Channel Passband	±0.5nm	Technology	AAWG (Flat top)
Insertion Loss	≤6.0dB	Link Loss	≤12dB
Center Wavelength Accuracy	±0.05nm	Total Crosstalk	≥5dB
-0.5dB Bandwidth	≥90GHz	-3dB Bandwidth	≥150GHz
Return Loss	≥ 40dB	Directivity	≥ 40dB
Polarization Mode Dispersion	≤ 1.0ps	Polarization Dependent Loss	≤ 0.7dB
Channel Isolation	Adjacent ≥ 10dB Non-adjacent ≥ 22dB	Temperature	Operating -5 to 65°C Storage -40 to 85°C

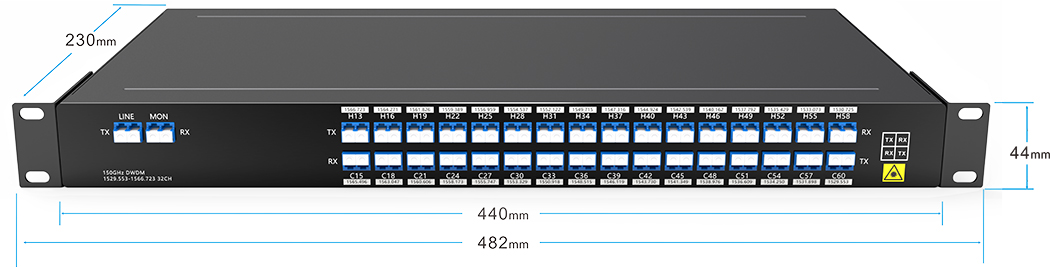

Net Weight	3.5KG	Dimensions (HxWxD)	44440230mm

Note: Specified with connectors.

Hannel Plan32Port AWG - On grid

Table1 Channels List：Pass bands for 32channel AAWG

Channel	Frequency	Wavelength	Channel	Frequency	Wavelength
#	(THz)	(nm)	#	(THz)	(nm)
C60	196.00	1529.553	C36	193.60	1548.515
H58	195.85	1530.725	H34	193.45	1549.715
C57	195.70	1531.898	C33	193.30	1550.918
H55	195.55	1533.073	H31	193.15	1552.122
C54	195.40	1534.250	C30	193.00	1553.329
H52	195.25	1535.429	H28	192.85	1554.537
C51	195.10	1536.609	C27	192.70	1555.747
H49	194.95	1537.792	H25	192.55	1556.959
C48	194.80	1538.976	C24	192.40	1558.173
H46	194.65	1540.162	H22	192.25	1559.389
C45	194.50	1541.349	C21	192.10	1560.606
H43	194.35	1542.539	H19	191.95	1561.826
C42	194.20	1543.730	C18	191.80	1563.047
H40	194.05	1544.924	H16	191.65	1564.271
C39	193.90	1546.119	C15	191.50	1565.496
H37	193.75	1547.316	H13	191.35	1566.723

Package Information

32CH DWDM 19” 1U Rack

Order Information

Product No.	Product description
DMD32-1U01-150GHZ-M-H13C60	150GHz 32CH DWDM MUX DEMUX 1529.553nm-1566.723nm with Monitor Port LC/UPC 1U Rack

Note: We Support Customized Design, please contact us by email.
