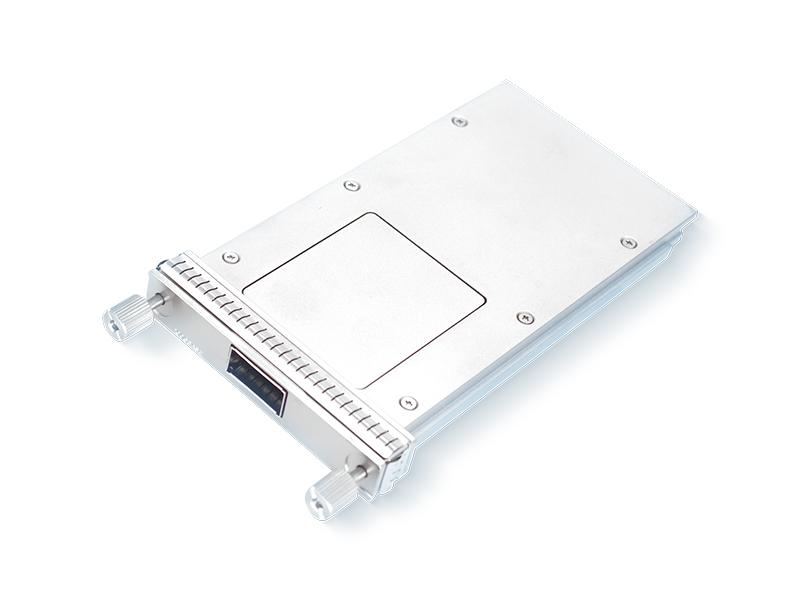

100G CFP轉QSFP28轉換模塊帶FEC

Features

CAUI -10 Electrical Interface:10 Lanes @10Gbit/s for CFP port
CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for QSFP28 port
Hot Pluggable
Low latency FEC
MDIO, I2C Support
Compliant to CFP MSA
Case operating temperature: 0 to 70 °C
The RQ-CFP-QSFP28-F Adaptor Module converts a 100 Gigabit CFP port into a 100 Gigabit QSFP28 port. With the Adaptor Module, customers have the flexibility to use the 100 Gigabit CFP interface port of a switch with CFP modules or QSFP28 modules. For 100G Ethernet, reference clock can switch 161.133mhz or 644.531mhz; For OUT 4, reference clock can switch 174.703mhz or 698.812mhz; Users can control whether FEC function is enabled or not through register configuration.

現在查詢下載

類別

熱門產品

產品詳細信息

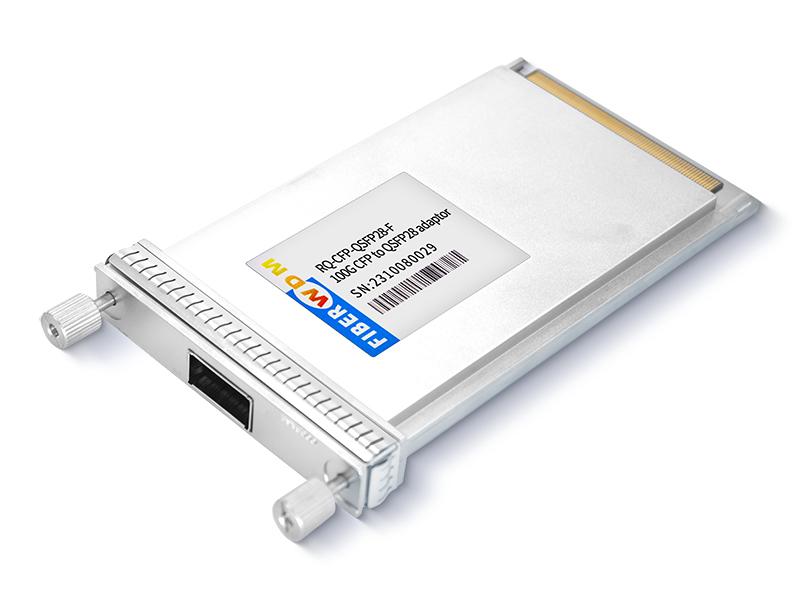

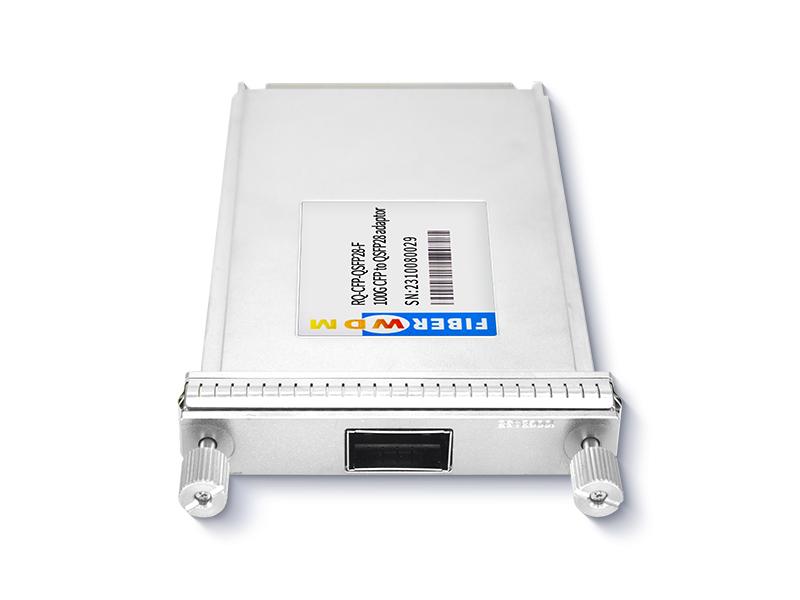

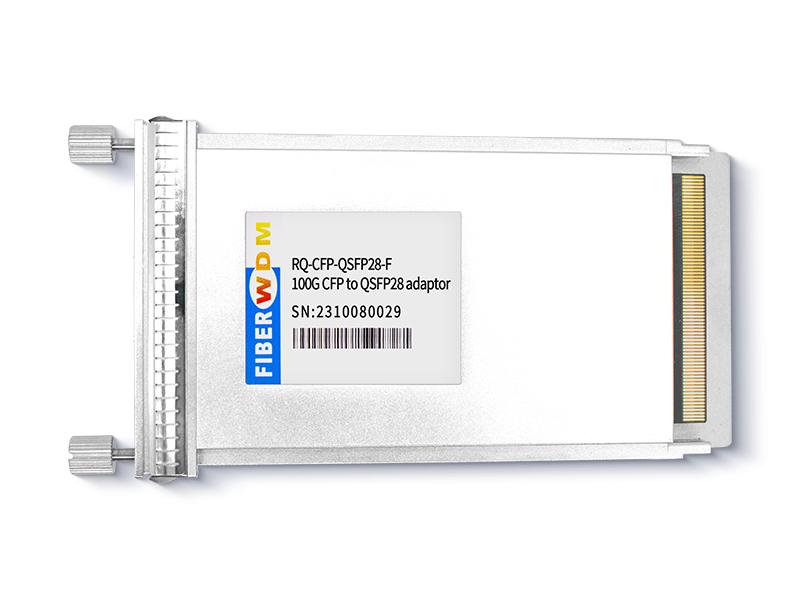

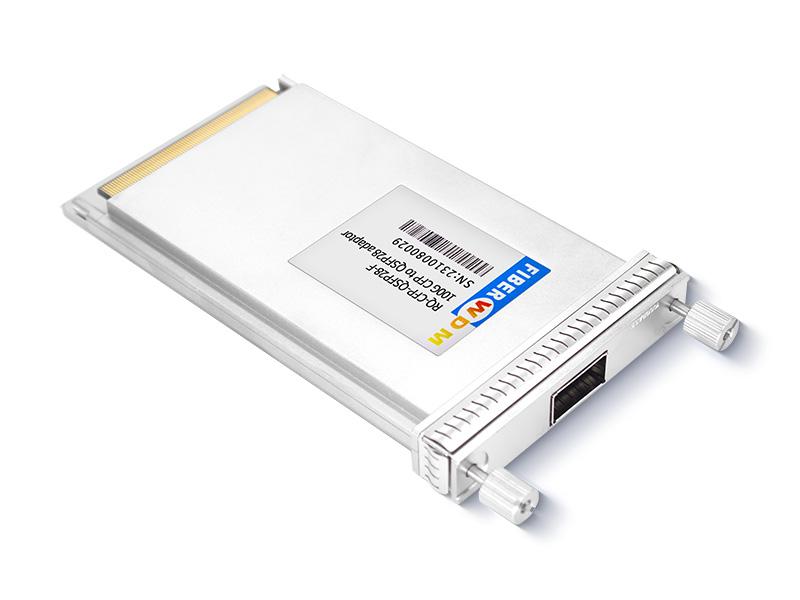

100G CFP TO QSFP28 Adaptor Module with FEC

100G CFP to QSFP28 Adptor Module

GENERAL DESCRIPTION

General Information
Manufacturer Part Number	RQ-CFP-QSFP28-F
Product Name	RQCFP-QSFP28-F Adaptor Module
Product Type	Adaptor Module
Power consumption	Max: 5W (3.3V voltage， max current 1.5A)
I/O Expansions
CFP port	MDIO
QSFP28 port	I2C
Physical Characteristics
Dimensions	13.6mmHeight x 82mmWidth x 144.75mm Depth

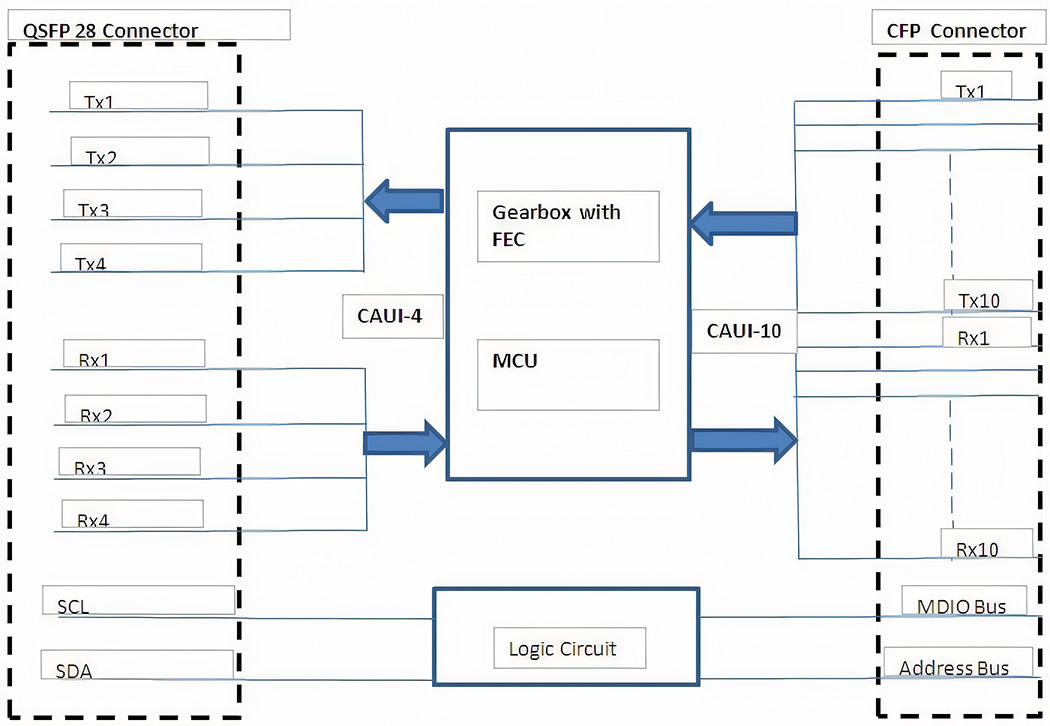

Block Diagram

CFP to QSFP28 Adaptor Module

CAUI-10 Interface (CFP port)

CAUI Receiver Parameters	Symbol	Min.	Typ.	Max.	Unit	Note
Signal Rate Per Lane			10.3125		Gb/s
Differential data output swing per lane	Vout, pp	CAUI-10 as defined by IEEE P802.3bm			mV
Data output rise time	tr				ps
Data output fall time	tf				ps
CAUI Transmitter Parameters	Symbol	Min.	Typ.	Max.	Unit	Note
Signal Rate Per Lane			10.3125		Gb/s
Frequency offset		-100		100	ppm	100G Ethernet
Frequency offset		-20		20	ppm	OTU4
Input differential impedance	Rin	CAUI-10 as defined by IEEE P802.3bm			Ω
Differential data input swing per lane	Vin,pp				mV
Data input rise time tolerance	tr				ps
Data input fall time tolerance	tf				ps

CAUI-4 Interface (QSFP28 port)

CAUI Receiver Parameters	Symbol	Min.	Typ.	Max.	Unit	Note
Signal Rate Per Lane			25.78		Gb/s
Differential data output swing per lane	Vout,pp	CAUI-4 as defined by IEEE P802.3bm			mV
Data output rise time	tr				ps
Data output fall time	tf				ps
CAUI Transmitter Parameters	Symbol	Min.	Typ.	Max.	Unit	Note
Signal Rate Per Lane			25.78		Gb/s
Input differential impedance	Rin	CAUI-4 as defined by IEEE P802.3bm			Ω
Differential data input swing per lane	Vin, pp				mV
Data input rise time tolerance	tr				ps
Data input fall time tolerance	tf				ps

Ethernet Mode FEC Configuration Management

CFP Address	Detail	Bit	Description	Detail	Hex
A011	Network Lane TX Control	1:3	Ethernet and FEC	1111b	0x000F
			OTU4	0111b	0x0007
			Ethernet	0000b	0x0001
		0:0	1/64	0001b	0x0001
		0:0	1/16	0000b	0x0000

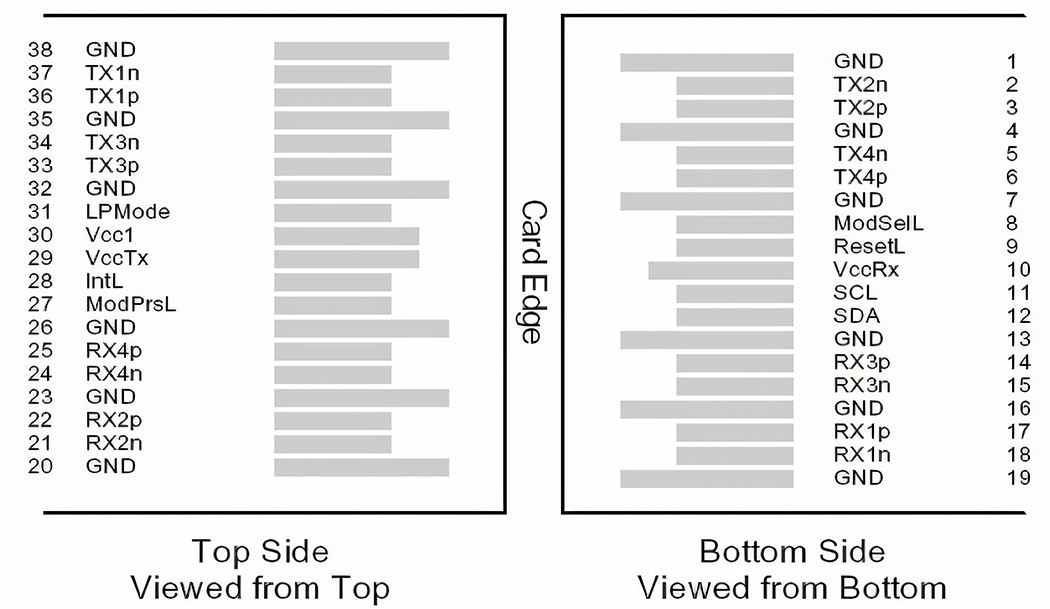

PIN Assignment of QSFP28 port

CFP to QSFP28 Adaptor Module

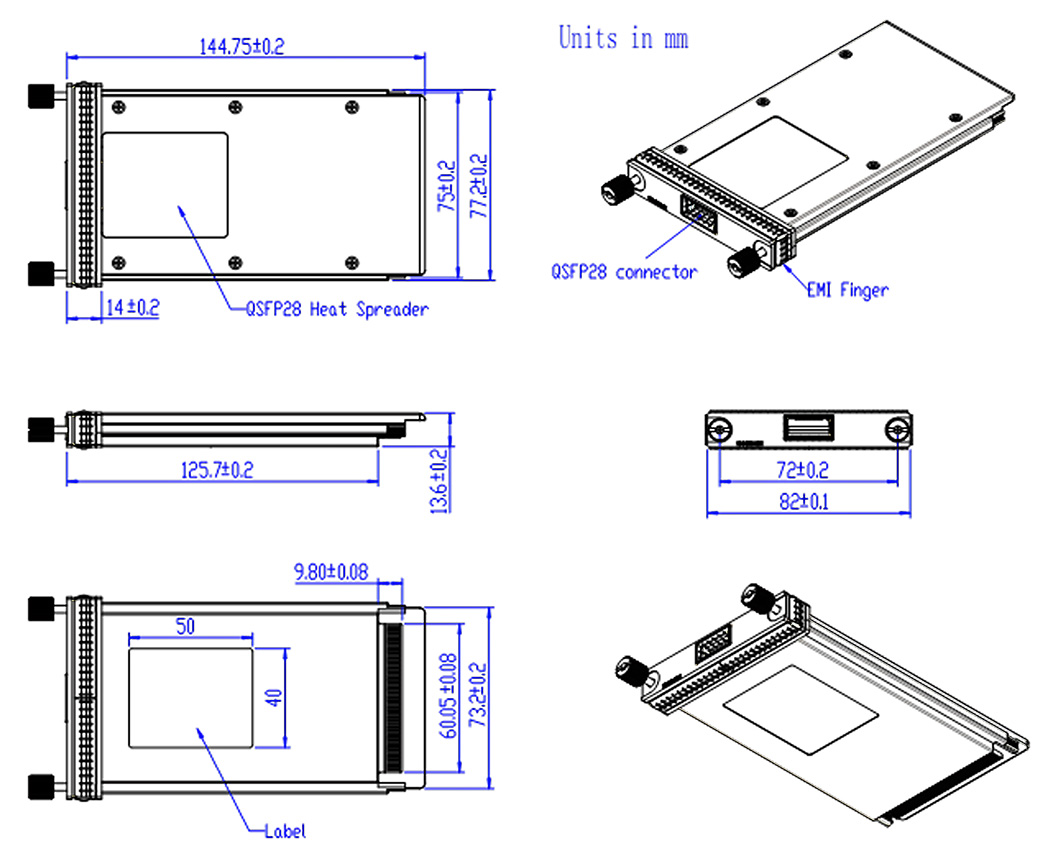

Package Outline (Unit: mm)
